Self-locking locks Mechanical self-locking locks
92/45

For all interior and exterior doors with self-locking and panic handle function. 15 mm lock width allows easy replacement of existing locks without additional modifications. The panic handle orientation can be adjusted during installation. Locks have fire and safety certification.

Self-locking locks

sizes 92/45 92/35 72/60 90/50 72/55 72/65

Links Accessories

next model

Electromechanical self-locking locks

How to choose suitable lock?

Variable selection of handle to cylinder and handle to face plate dimentions
What is handle to cylinder and handle to face plate dimention?
Double side latch - left/right
Panic handle orientation mechanically adjustable during installation
How to change panic handle orientation?
The most stressed stainless steel parts are processed with the new MIM metallurgical technology
Inner square of handle is usually 8 x 8 mm, possibility to order 9 x 9 mm
Possibility to choose the dimensions of the face plate from our selection
Frequently asked questions

Explanatory notes:

SAM - self-locking lock
ME - mechanical lock
MB - mechanical blocking: possibility to mechanically swith from/to day or night mode

Self-locking locks - SAM REV MI P 72/55

WITH SELF-LOCKING FUNCTION WITHOUT PANIC HANDLE

Order code: SAM REV MI P 7255

Warranty period: 3 years

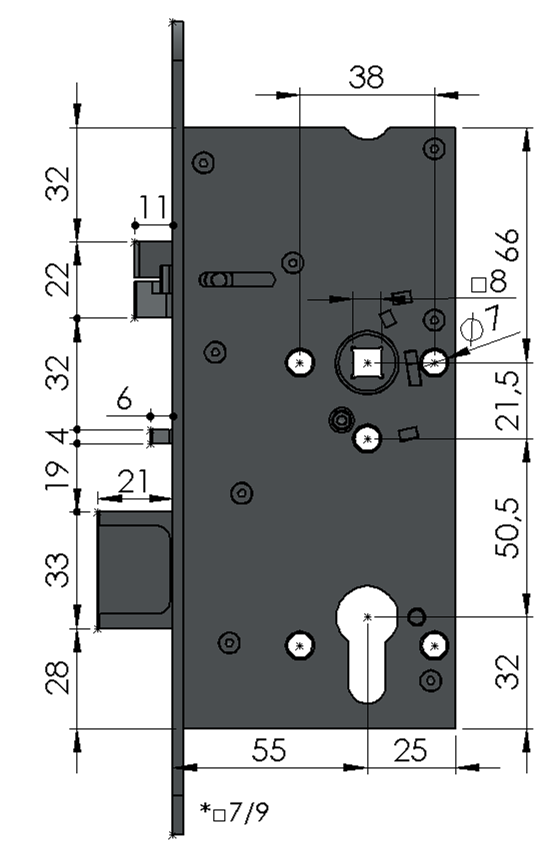

Technical data:

Dimention of lock: 170 x 80 x 15 mm
Dimention of handle to face plate: 55 mm
Dimention of handle to cylinder: 72 mm
Square of handle: 8 x 8 mm non-split square, possibility to order 9 x 9 mm
Standard dimention of face plate: 235 x 20 x 3 mm, R10 stainless steel. Other variations of face plates here
Type of lock: left/right
Panic handle: NO

Electrotechnical data:

solenoid 10 - 24V DC / 250mA (for 10V)
with reverse polarity protection
without acoustic signalization
electric control of both handles, without panic handle function
reverse version - without voltage, the external handle is in the active position, ie. it unlocks the lock
with 3 microswitches for monitoring:
- the bar
- handle which is opening the lock
- self-timer
with connector

Certifikace:

EN 1627:2012 CLASS RC3
EN 1634-1:2018: CLASS EI30
EN 14846:2008: CLASS 3S8C-L613

more information about certifications and norms here

SAM 92/35	price	SAM 90/50	price	SAM 72/55	price
SAM ME 9235	3 707 Kč	SAM ME 9050	2 992 Kč	SAM ME 7255	2 937 Kč
SAM MB 9235	3 780 Kč	SAM MB 9050	3 065 Kč	SAM MB 7255	3 010 Kč
